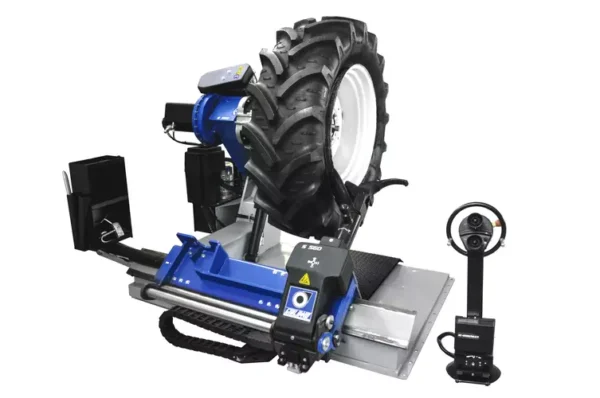

Tire changing machine

Description

Heavy duty truck tyre changer machine suitable for truck, bus, agriculture and earth-moving heavy tyres with 14″ – 58″(1) rim (max. wheel diameter 2400 mm./94,5″, max. wheel width 1300 mm./ 51″), equipped with two-speed hydraulic clamping chuck, tool holder arm carriage with automatic movement, automatic tool rotation and mobile control unit for safe and convenient operation. Suitable for both tube and tubeless tyres.
The greatest number of operating arm automatic features, high performance and most powerful engines make this tyre changing machine ideal choice for those, who want something more than S 551 XL.
Excellent quality super-automatic machine capable of handling earth moving wheels. Suggested for professional truck tyre service and high volume shops.
Make tyre changing for heavy-duty vehicles and agriculture tyres a breeze with our truck tyre changer machine. Get the job done quickly and efficiently!

Functions
Hydraulic movement of clamping chuck holding arm (up-down).
Hydraulic travel movement of operating arm carriage (left-right).
Operating arm automatic tilting and travelling on carriage.
Double tool (disk + finger) automatic rotation.
Wheel clamping by fully hydraulic operated jaws.
Operating arm and clamping chuck arm facing each other.
All motions controlled by console and pedal box.
Emergency safety button on control console, for stopping all functions.
Suitable for control consolle installation on pivoting arm (optional).
Rim center hole clamping range ø 80 – 1200 mm.
Clamping chuck minimum height from ground 315 mm (center).
Wide and low profiled platform eases the loading of heavy wheels.
Clamping chuck is powered by two speed electric motor.
Suitable for remote control installation (optional). Replaces standard cables and enables all functions control by radio transmission.
Designed, built and engineered in Italy.
“Right to repair” – all service parts available for at least 10 years since production, easy maintenance and reduced environmental impact.
